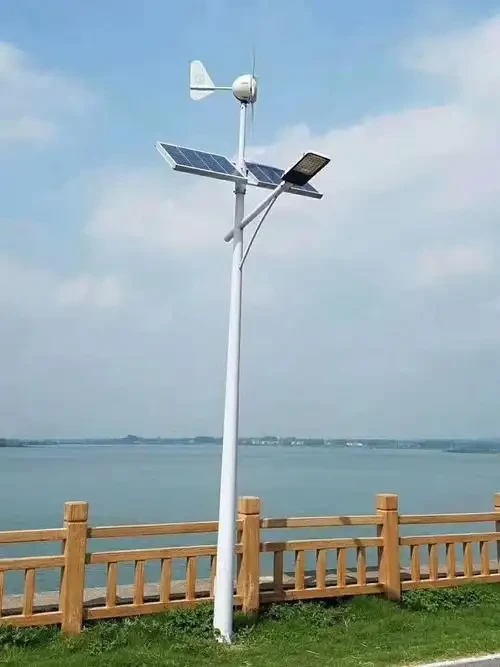

What Is a Wind-Solar Hybrid Street Light?
Definition
A wind-solar hybrid street light (also known as a wind-solar complementary street light) is an off-grid lighting system that generates electricity from both wind and solar energy The wind turbine converts wind energy into electricity, while solar panels convert sunlight into electricity. Both energy sources are managed by an intelligent controller, stored in batteries, and used to power LED luminaires automatically at night .
Why Hybrid?
| Comparison | Solar-Only | Wind-Only | Wind-Solar Hybrid |
|---|---|---|---|
| Energy Source | Sunlight only | Wind only | Sunlight + Wind |
| Cloudy Day Performance | Reduced/no power | Still generating (if windy) | Continuous power |
| Calm Night Performance | No power (after sunset) | No power | Battery-powered from stored energy |
| Reliability | Weather-dependent | Weather-dependent | Highly reliable-dual sources complement each other |
| Rainy Day Advantage | Low generation | Higher wind often accompanies rain | Hybrid captures wind when solar is weak |
Core Components
| Component | Function |
|---|---|
| Wind Turbine | Converts wind energy to electricity (50W-600W) |
| Solar Panels | Convert sunlight to electricity (30W-320W) |
| Battery | Stores energy for nighttime use (10Ah-500Ah) |
| Hybrid Controller | Manages charging, discharging, and lighting control |
| LED Luminaire | Provides illumination (10W-180W) |
| Pole Structure | Supports the entire system, 6m-12m height |
Core Advantages
🔧 Advantage 1: Dual Energy Sources – Uninterrupted Power Supply
Unlike solar-only systems that fail on cloudy days, wind-solar hybrid systems generate power from both wind and sun simultaneously. When it rains, wind speeds often increase, allowing the wind turbine to compensate for reduced solar output . This complementary design ensures the battery remains charged and lighting is available every night of the year.
Key benefit: 3-7 days of backup power on cloudy, windless days
🔧 Advantage 2: Zero Electricity Costs – 100% Renewable
Once installed, the system costs nothing to operate . No electricity bills. No meter charges. No rate increases. The system operates entirely on free energy from the wind and sun, with payback typically achieved within 3-5 years.
🔧 Advantage 3: No Trenching or Cabling – Quick Installation
Unlike grid-powered street lights that require costly cable trenching and infrastructure, wind-solar hybrid systems are completely off-grid and self-contained . Installation is simple and fast:
No excavation or cable laying
No connection to the power grid
No power outage impact - each pole operates independently
On-site assembly and mounting only
🔧 Advantage 4: Low Wind Start-Up – Capturing Gentle Breezes
Our systems feature vertical-axis wind turbines with full permanent-magnet levitation technology . This design:
Starts generating power at wind speeds as low as 1.5m/s
Operates efficiently in moderate wind conditions
Works in any wind direction - no yaw mechanism required
Withstands typhoon-force winds up to 45m/s
🔧 Advantage 5: Intelligent Control – Automated and Adaptive
The system features a microcomputer-based intelligent controller that automates all operations:
Dusk-to-dawn control – Automatically turns lights on at sunset and off at sunrise
Timed control – Programmable lighting schedules
MPPT charging – Maximizes energy harvest from both solar and wind sources
Over-charge protection – Prevents battery damage
Over-discharge protection – Preserves battery life
Short-circuit protection – Ensures system safety
🔧 Advantage 6: Long Service Life – Built to Last
| Component | Lifespan |
|---|---|
| Solar Panels | 20-25 years |
| Wind Turbine | 15-20 years |
| Pole Structure | 20+ years (hot-dip galvanized) |
| LED Luminaire | 50,000-100,000 hours |
| Battery | 3-8 years (replaceable) |
🔧 Advantage 7: Weatherproof Design – All-Climate Operation
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Wind Resistance | ≥150 km/h (up to typhoon level) |
| Ingress Protection | IP65 (luminaire and controller) |
| Corrosion Protection | Hot-dip galvanized pole with powder coating |
🔧 Advantage 8: Security Features – Anti-Theft and Anti-Vandalism
Our systems include:
Underground battery enclosures – Hidden and secured against theft
Lockable access points – Prevents unauthorized access
Stainless steel hardware – Corrosion-resistant and tamper-proof
Technical Specifications
Model Series
| Model | Pole Height | LED Power | Solar Panel | Wind Turbine | Battery | Typical Application |
|---|---|---|---|---|---|---|
| WS-30 | 6m-7m | 30W | 80W-120W | 150W | 12V/100Ah | Pathways, gardens |
| WS-40 | 6m-8m | 40W | 120W | 150W-200W | 12V/120Ah | Branch roads |
| WS-60 | 8m-9m | 60W | 150W | 200W-300W | 12V/150Ah | Secondary roads |
| WS-80 | 8m-10m | 80W | 180W-200W | 300W | 24V/200Ah | Urban roads |
| WS-100 | 10m-12m | 100W | 200W-240W | 300W-400W | 24V/200Ah | Main roads, highways |
| WS-120 | 10m-12m | 120W | 240W-300W | 400W-500W | 24V/250Ah | Major roads, plazas |
Wind Turbine Specifications
| Parameter | Specification |
|---|---|
| Type | Vertical-axis / Horizontal-axis |
| Rated Power | 150W – 600W |
| Start-up Wind Speed | 1.5m/s – 3.0m/s |
| Rated Wind Speed | 10m/s – 12m/s |
| Survival Wind Speed | 45m/s (typhoon-rated) |
| Generator Type | Permanent magnet synchronous |
| Blade Material | High-strength composite / Aluminum alloy |
Solar Panel Specifications
| Parameter | Specification |
|---|---|
| Type | Monocrystalline / Polycrystalline |
| Conversion Efficiency | ≥16% (monocrystalline) |
| Rated Power | 30W – 320W |
| Operating Voltage | 12V / 24V DC |
| Lifespan | 20-25 years |
| Construction | Tempered glass + aluminum frame |
Battery Specifications
| Parameter | Specification |
|---|---|
| Type | Gel / LiFePO4 (Lithium Iron Phosphate) |
| Voltage | 12V / 24V DC |
| Capacity | 100Ah – 300Ah (based on system size) |
| Type | Valve-regulated, sealed, maintenance-free |
| Lifespan | 3-8 years (replaceable) |
| Installation | Surface-mounted / Underground (anti-theft) |
Pole Specifications
| Parameter | Specification |
|---|---|
| Height | 6m – 12m |
| Material | Q235 / Q345 high-strength steel |
| Section Shape | Conical round / Octagonal |
| Wall Thickness | 3mm – 5mm (based on height and wind load) |
| Wind Turbine Mount | Mid-pole bracket (6m-8m height) |
| Solar Panel Mount | Top bracket with tilt adjustment |
| Surface Treatment | Hot-dip galvanizing (80-100μm) + optional powder coating |
| Corrosion Protection | 20+ years |
| Color | Standard: RAL 7047 / Custom: any RAL color |
Controller Specifications
| Parameter | Specification |
|---|---|
| Type | MPPT / PWM intelligent controller |
| Charging Method | 2-stage / 3-stage, auto-temperature compensation |
| Protection Features | Over-charge, over-discharge, short-circuit, reverse polarity, lightning |
| Control Modes | Light control (dusk-to-dawn) + Time control |
| Monitoring | Optional remote monitoring (4G/IoT) |
| Operating Temperature | -30°C to +65°C |
| Ingress Protection | IP65 |
LED Luminaire Specifications
| Parameter | Specification |
|---|---|
| Power | 30W – 150W |
| Luminous Efficacy | 140-160 LM/W |
| Color Temperature | 4000K (neutral) / 5000K (cool) / 6500K (daylight) |
| CRI | ≥70 |
| Ingress Protection | IP65 |
| Beam Angle | 120° (standard) |
| Lifespan | 50,000-100,000 hours |
| LED Chip Brand | Bridgelux / Epistar (optional) |
How It Works
Daytime Operation
Solar panels convert sunlight into DC electricity
Wind turbine converts wind energy into AC electricity, rectified to DC
Hybrid controller manages both energy inputs
Batteries store the combined energy
Nighttime Operation
Light sensor detects darkness
Controller automatically switches to battery power
LED luminaire illuminates at full or dimmed power
Timer function can reduce brightness during late-night hours
Rainy Day / Low Wind Scenario
Solar generation is reduced (cloudy)
Wind generation may increase (rain often brings wind)
Battery reserves provide backup for 3-7 days
Controller manages energy conservation to extend operation
